The pipes for lifetime

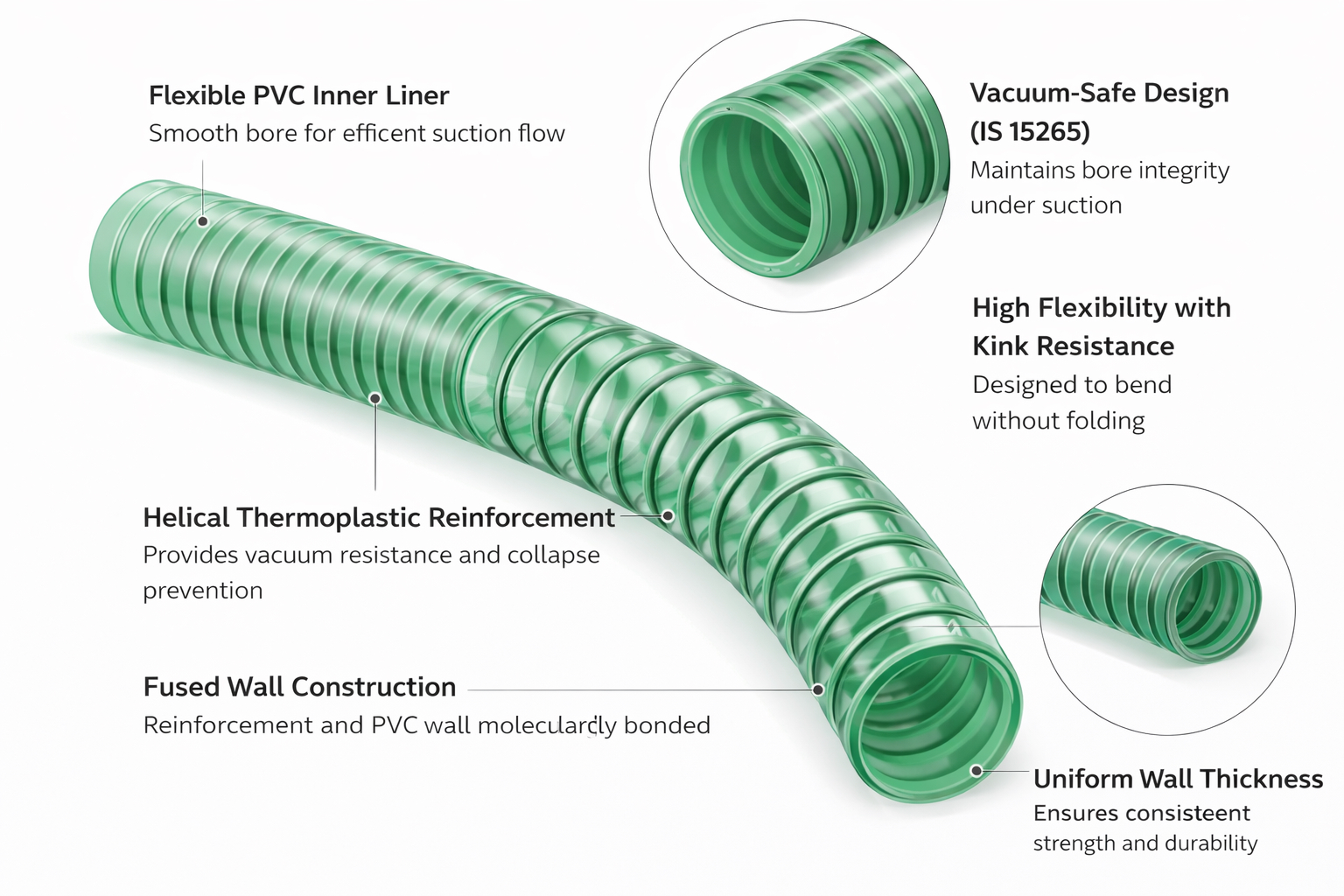

Ori-Plast uPVC Suction Pipes are specifically engineered for heavy-duty suction and delivery applications. Reinforced with a rigid uPVC spiral anti-shock reinforcement, these pipes are designed to withstand vacuum pressure and harsh outdoor conditions without collapsing or cracking.
Manufactured under strict quality control standards and rigorously tested to meet IS 15265 requirements, these pipes ensure safety, reliability, and consistent performance across demanding operating conditions.

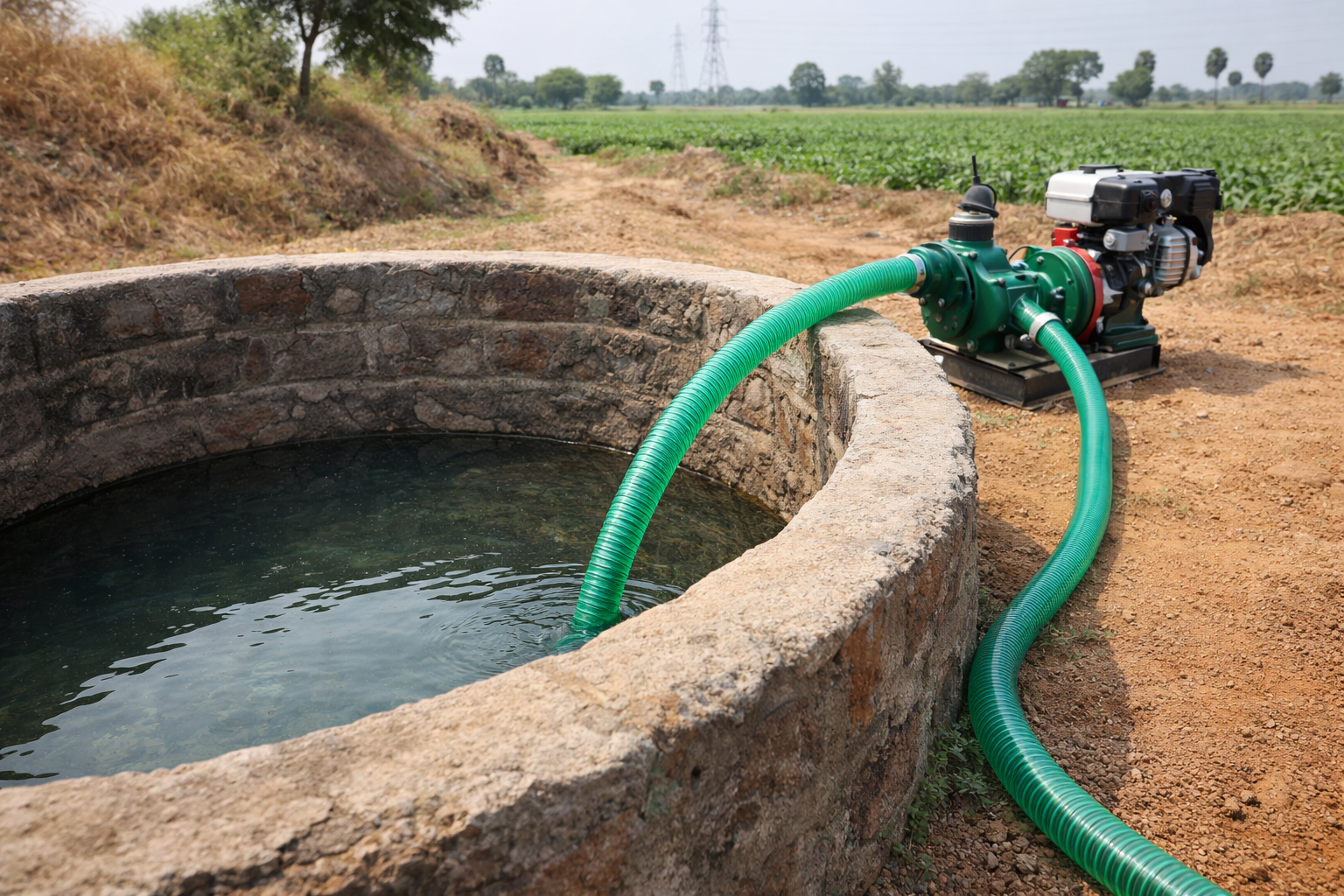

Ori-Plast uPVC Suction Pipes are ideal for use in wells, canals, rivers, sumps, and tanks. They are widely used for agricultural pump suction and delivery lines, as well as irrigation and water transfer applications, making them a dependable solution for both agricultural and industrial needs.
| S/L No. | Size (mm) | Size (inches) | Length Per Roll | Bend Radius |
|---|---|---|---|---|
| 1 | 20mm | 3/4" | 30mtr | 100mm |
| 2 | 25mm | 1" | 30mtr | 125mm |
| 3 | 32mm | 1.25" | 30mtr | 160mm |
| 4 | 38mm | 1.5" | 30mtr | 190mm |
| 5 | 40mm | 2" | 30mtr | 200mm |
| 6 | 50mm | 2.25" | 30mtr | 250mm |
| 7 | 63mm | 2.5" | 30mtr | 315mm |
| 8 | 75mm | 3" | 30mtr | 375mm |
