Oriplast Electrofusion Fittings The Secure and Efficient Way to Connect Pipes

Ideal solutions for complete water supply system with zero maintenance for hot-n-cold water.

Oriplast Electrofusion Fittings

Introducing Oriplast Electrofusion Fittings

Oriplast, a leading manufacturer of PVC pipes and fittings in West Bengal, introduces its innovative Electrofusion Fittings – the perfect solution for strong, leak-proof pipe connections.

Advantages of Oriplast Electrofusion Fittings?

  1. Unmatched Strength: Electrofusion creates a permanent weld between the pipe and fitting, eliminating the risk of leaks and ensuring a reliable connection that can withstand high pressure and harsh conditions.
  2. Fast and Efficient Installation: The electrofusion process is simple and requires minimal tools. Simply insert the pipe into the fitting, apply an electric current, and the connection is formed quickly and efficiently. This translates to faster project completion times and reduced labor costs.
  3. Safe and Reliable: Electrofusion eliminates the need for open flames and hazardous adhesives, making it a safer alternative to traditional solvent cement welding. This is particularly beneficial for confined spaces or areas with fire safety concerns.
  4. WRAS Approved: Oriplast Electrofusion Fittings are approved by WRAS (Water Regulations Approval Scheme), an independent UK certification body for plumbing products and materials. WRAS helps businesses and consumers choose compliant products that keep water safe.
  5. Versatility for Various Applications: Oriplast Electrofusion Fittings are compatible with a wide range of Oriplast PVC pipes, making them suitable for various
PRODUCTS

Standard

WRAS Certified

FAQs

    Q1: What are Oriplast Electrofusion Fittings and how do they work?

    A: Oriplast Electrofusion Fittings are specially engineered PE100 fittings with built-in copper resistance wire coils. An electrofusion machine passes a controlled electric current through the coils, melting the fitting’s inner layer and the pipe’s outer surface to create a single, homogenous, leak-proof weld.

    Q2: Which material grades are Oriplast Electrofusion Fittings compatible with?

    A: Oriplast Electrofusion Fittings are manufactured using high-density PE100 material and are compatible with both PE80 and PE100 grade polyethylene pipes for water and gas distribution.

    Q3: What international certifications do Oriplast Electrofusion Fittings hold?

    A: Oriplast Electrofusion Fittings carry prestigious WRAS (Water Regulations Approval Scheme) certification from the UK, verifying that they are non-toxic, safe for drinking water, and compliant with international plumbing safety regulations.

    Q4: What pressure ratings do Oriplast Electrofusion Fittings support?

    A: Oriplast Electrofusion Fittings are pressure-rated up to 16 bar (PN16) for water supply networks and 10 bar for gas pipelines under SDR 11 ratings.

    Q5: What size ranges are available in Oriplast Electrofusion Fittings?

    A: Depending on the fitting type, Oriplast supplies electrofusion couplers, elbows, tees, and reducers ranging from D20 mm to D180 mm in standard SDR 11 and SDR 17 classes.

    Q6: How does barcode traceability work on Oriplast Electrofusion Fittings?

    A: Each fitting features an embedded barcode containing precise welding parameters (voltage, heat cycle, and fusion/cooling times). The electrofusion machine automatically scans this barcode to eliminate human error during installation.

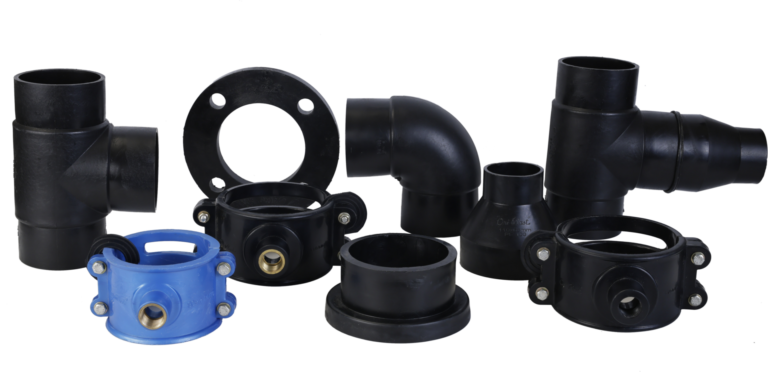

    Q7: What types of electrofusion fittings are available in Oriplast’s catalog?

    A: The range includes Electrofusion Couplers, 90° Elbows, 45° Elbows, Equal Tees, Reducers, End Caps, Tapping Saddles, and PE-to-Metal Transition Couplers (Brass and SS 304).

    Q8: Why is electrofusion preferred over traditional jointing methods?

    A: Electrofusion forms a permanent molecular bond that is often stronger than the pipe itself. It requires no open flames or hazardous solvent cements, drastically reducing labor time and fire hazards.

    Q9: Can Oriplast Electrofusion Fittings be installed in tight or confined spaces?

    A: Yes, unlike heavy butt-fusion equipment that needs large operational clearances, electrofusion welding requires minimal space, making it ideal for narrow urban trenches, repairs, and confined utility spaces.

    Q10: Are Oriplast Electrofusion Fittings suitable for gas distribution networks?

    A: Yes, because they form airtight, gas-tight, and pressure-resistant joints, Oriplast electrofusion fittings are widely used in urban gas grids and LPG/PNG distribution pipelines.

    Q11: What are Electrofusion Transition Couplers used for?

    A: Oriplast Electrofusion Transition Couplers feature brass or stainless steel (SS 304) threaded connections. They allow seamless, leak-proof transitions between PE pipes and metallic pipes, valves, or fixtures.

    Q12: How do electrofusion fittings perform under ground movement and traffic vibrations?

    A: Because electrofusion creates a flexible, monolithic PE structure, the joints resist soil shifts, traffic vibrations, thermal expansion, and water hammer spikes without cracking or leaking.

    Q13: What basic steps are required to install an electrofusion joint?

    A: Installation involves scraping and cleaning the pipe ends, inserting the pipe into the fitting, connecting the electrofusion processor leads, scanning the barcode to execute the heat cycle, and allowing the joint to cool completely.

    Q14: Are Oriplast Electrofusion Fittings safe for potable water supply?

    A: Yes, being non-metallic, non-toxic, and WRAS-approved, they do not rust, leach chemicals, or support bacterial growth, keeping drinking water 100% pure.

    Q15: What is the expected service life of an Oriplast electrofusion joint?

    A: When welded according to standard procedures, Oriplast electrofusion joints provide a corrosion-free, zero-maintenance operational lifespan of 50 years or more.
